V57 LARGE CONDENSER - STEREO PAIR SMALL CONDENSER MICROPHONES PACKAGE

Black Body w/Gold Grill

Cascade M39 - 22mm Small Condenser Black Body w/Gold Grill



The Cascade M39 is a cardioid condenser that has a 22mm diameter diaphragm. The Cascade M39 has a silky, open audio quality with a wide dynamic range essential for accurate, instrument recording and is ideal for use as drum over heads, hi-hat, snare, or acoustic instruments such as guitar and piano.



The M39 features a high SPL rating of 137 dB and is capable of capturing even the loudest of audio sources. The M39 is a compact microphone that is great for recording a wide range of instruments and is in use in professional and project studios around the world.

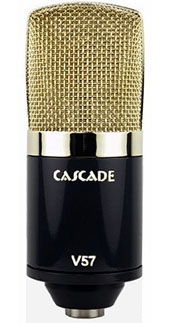

Cascade V57 Large Diaphragm Condenser

The Cascade V57 offer a 1.07" gold plated capsule and is a transformerless design. This microphone is suitable for most studio applications and is an exception value for project and pro studios alike. The frequency response is somewhat flat with a bump between 10-20k. The microphone includes a -10dB Pad and a 150Hz low-cut switch on the backside of the microphone. Extensive detail has been taken to assure that the audio quality and exterior finish meets the highest standards.



Sam French From RUST Magazine performs "Jerry" using an M39 on acoustic and a V57 for voice.

OUT OF PRODUCTION AT THIS TIME

Specifications

More Information

Alternate Images

Accessories

V57 Specifications:



  • Capsule: 1.07" gold-sputtered, Pressure Gradient Transducer
  • Pattern: Cardioid
  • Frequency Response: 20Hz - 20kHz
  • FET preamp
  • Output: Transformerless
  • Attenuator: -10dB Pad switch
  • High pass filter:150Hz low-cut switch @ 6dB per octave
  • Impedance: 150ohms
  • Sensitivity: 15mv/Pa
  • Max SPL: 137dB
  • Signal to Noise Ratio:74dB (Ref. 1Pa A-weighted per IEC268-15)
  • Equivalent Noise Level: 15dB (A weighted IEC 268-4)
  • Power Requirements: 48V Phantom Power (+- 4V)i
  • Size: 60mm x 160mm
  • Weight: 540g

M39 Specifications:



  • 22mm diameter diapragm
  • Power: P24V or P48V Phantom Power
  • 0dB switchable attenuation, selectable
  • -10dB low-frequency roll-off
  • Generating Element: Externally Biased Condenser
  • Polar Pattern: Unidirectional (Cardioid)
  • Frequency Response: 30 Hz - 20 kHz
  • Sensitivity: -56 dB 0dB=1V/uBar @ 1 kHz
  • Impedance: Low (Less than 200 Ohms)
  • Equivalent Noise Level: +14 dB (A-weighted)
  • Connector: 3-Pin male XLR
  • Weight: 135 Grams

Includes:



  • V57 Large Condenser Microphone
  • 2 x M39 Microphones
  • EVA foam lined molded plastic case
  • Premium suspension shockmounts

Suggested Uses:



  • Acoustic & Electric Guitars
  • Vocals
  • Horns
  • Strings
  • Banjo, Mandolin, Dobro
  • Drums (overhead)

Improve your recordings with our newly designed microphone isolation panel.

Cascade PF-1 5.25" Metal Screen Pop-filter

Cloud Microphones Cloudlifter- Add up to +25db of ultra-clean gain

Cascade Mogami NEGLEX 2534 Quad Microphone Cable w/Neutrik Gold Contact XLR Connectors.
